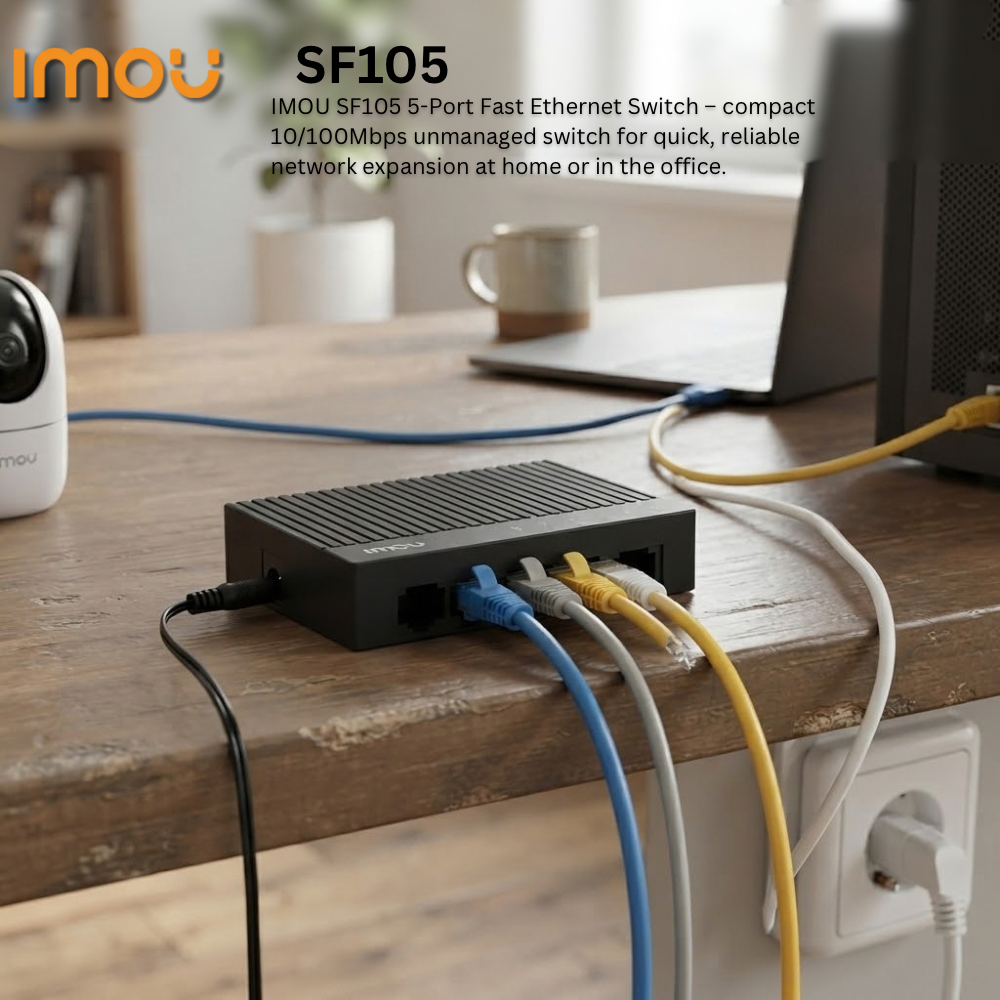

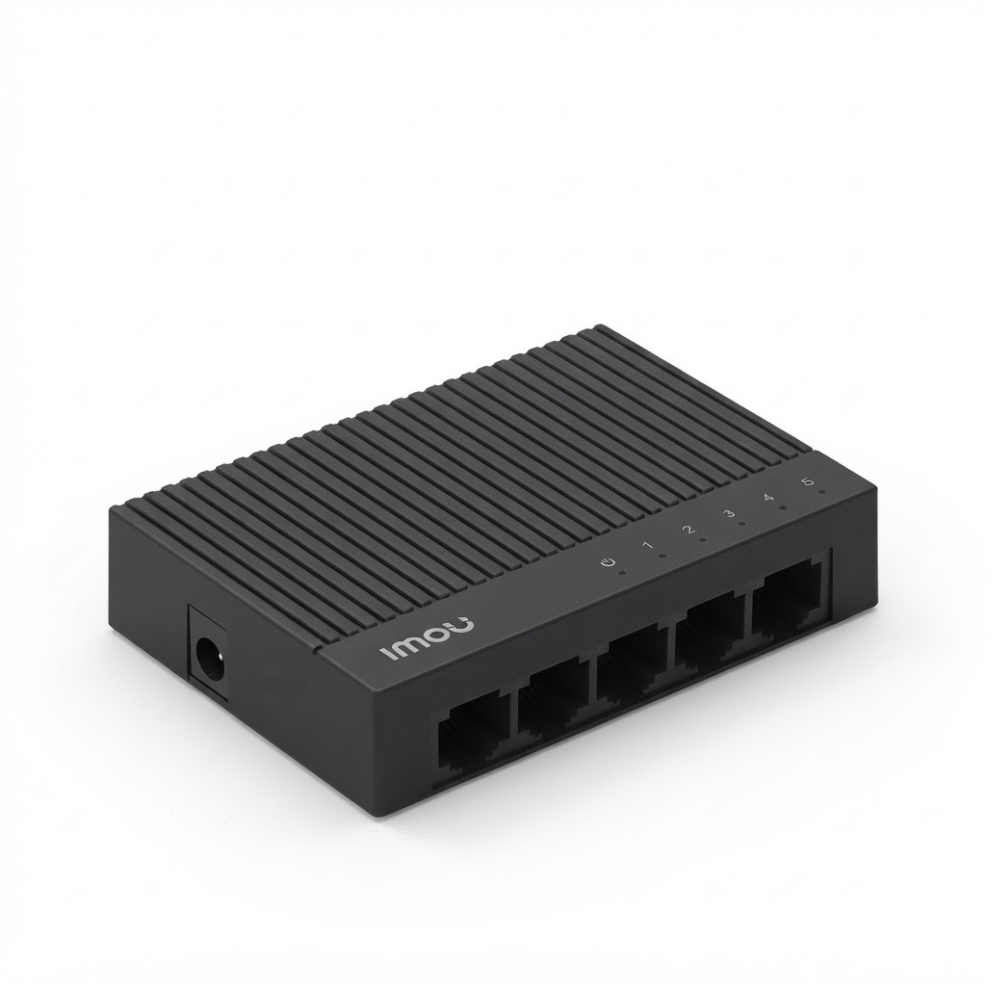

IMOU SF105 5-Port 10/100Mbps Fast Ethernet Switch

The IMOU SF105 is a compact, unmanaged 5-port 10/100 Mbps Fast Ethernet switch that expands wired connectivity for homes, small offices and surveillance systems. Its five RJ45 ports connect IP cameras, NVRs, computers, routers and other network devices.

It is plug and play, with no configuration or software, and offers 1 Gbps switching capacity, Auto MDI/MDIX and IEEE 802.3X flow control. Built-in surge protection (2 kV common mode / 1 kV differential mode) and a maximum power consumption of only 0.6 W make it a simple, energy-efficient solution, and the metal housing can sit on a desk or be mounted on a wall.

Note: this switch does not support PoE (Power over Ethernet).

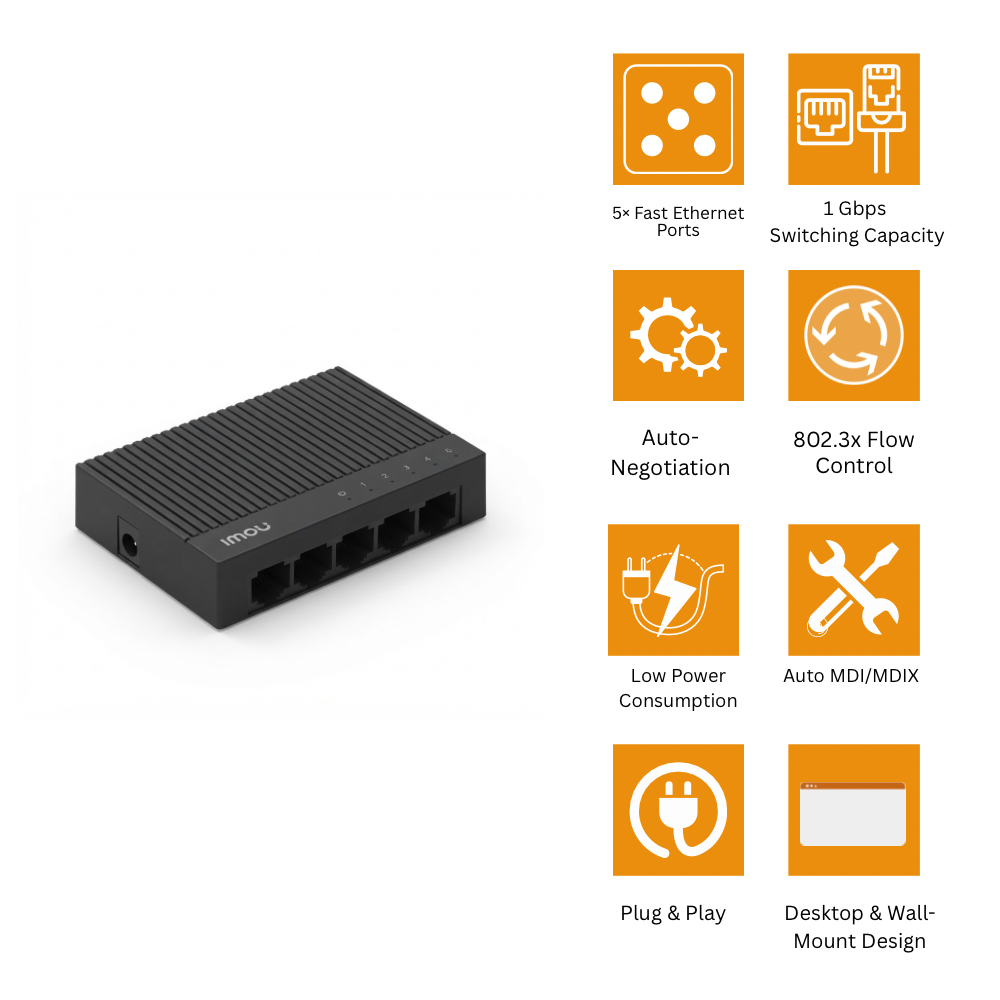

Key Features

• 5 × 10/100 Mbps RJ45 Fast Ethernet ports
• 1 Gbps switching capacity for efficient data forwarding
• Unmanaged plug & play: no configuration or software needed
• Auto MDI/MDIX detects the cable type automatically
• IEEE 802.3X flow control to reduce packet loss and congestion
• Surge protection: 2 kV common mode / 1 kV differential mode
• Low maximum power consumption of 0.6 W (DC 5V/1A external adapter)
• Compact metal housing for desktop or wall mounting
• Suitable for IP cameras, NVRs and other surveillance network devices

Technical Specifications

Why Choose the IMOU SF105?

• Simple, energy-efficient network expansion
• Surge protection for connected equipment
• Ideal for CCTV, home and small office networks
• Small enough for a desk or a wall

Warranty: 12-month warranty from the Official Distributor.
