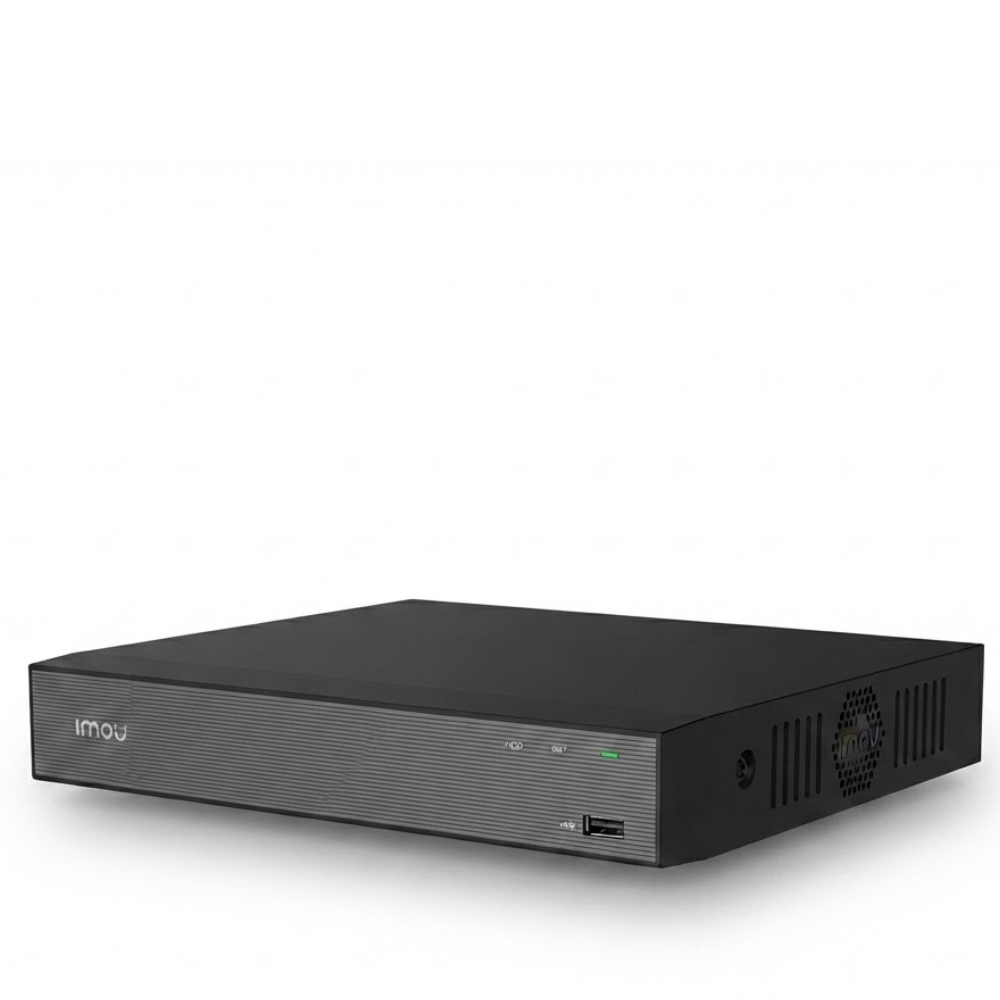

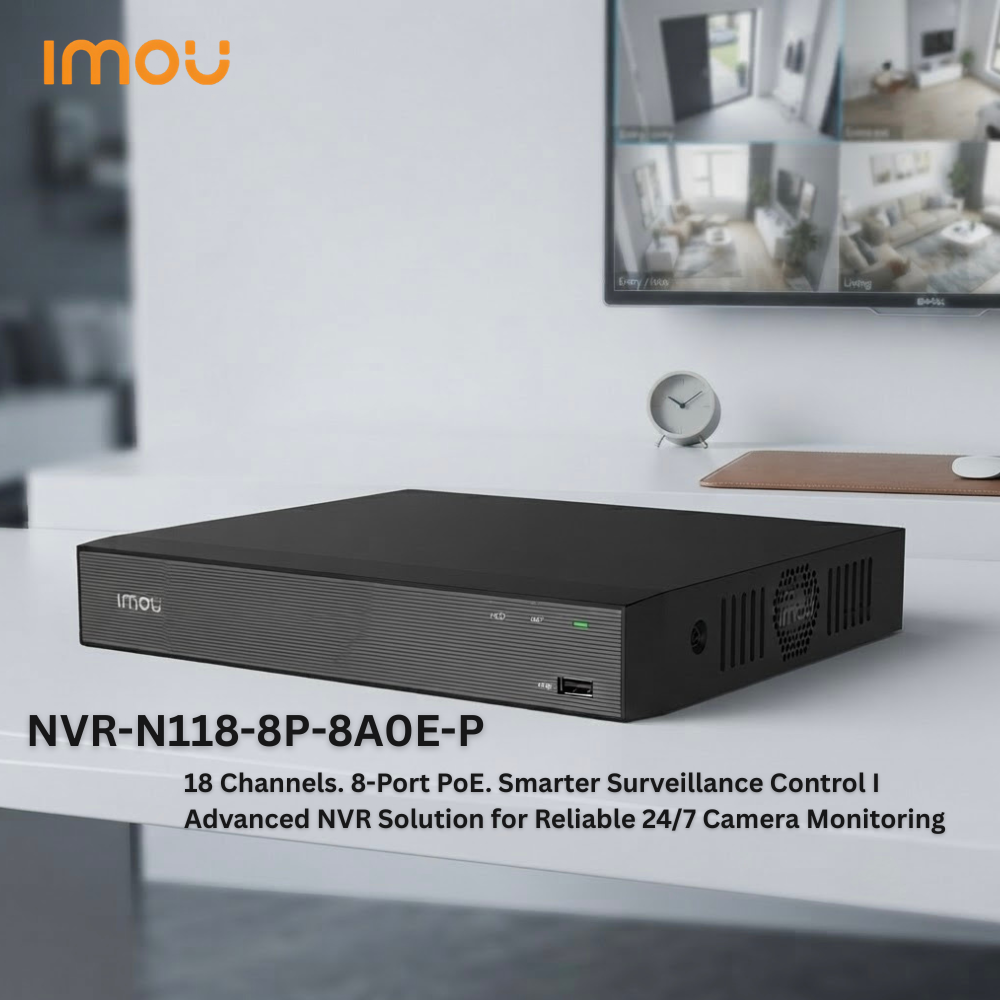

8-Port PoE 18-Channel Network Video Recorder (NVR) for IP Cameras – NVR-N118-8P-8A0E-P IMOU
In Stock
- Fast delivery across Jordan
- Professional installation available
- Genuine products with warranty
Specifications
| Specification | Details |
|---|---|
| Model | N118-8P (NVR-N118-8P-8A0E) |
| Product Name | IMOU N118-8P PoE NVR |
| Access Channels | 18 channels (8 PoE ports) |
| PoE Ports | 8 × 10/100 Mbps, IEEE 802.3af/at |
| PoE Power | 95 W total, max 30 W per port |
| Network Bandwidth | 90 Mbps incoming, 90 Mbps outgoing |
| Decoding Capability | 4-ch 8MP@15fps; 4-ch 6MP@25fps; 4-ch 5MP@30fps; 5-ch 4MP@30fps; 10-ch 1080p@30fps |
| Smart Detection | Motion / Person / Vehicle |
| Video Compression | H.265 / H.264 |
| Audio | Two-way audio, built-in microphone and speaker; AAC |
| Live Display | 1/4/8/9/10/16/18 split screens |
| Video Output | 1 × HDMI: up to 4K (3840 × 2160); 1 × VGA: up to 1920 × 1080 |
| Hard Drive | 1 SATA port, up to 16 TB |
| Backup | USB flash drive (MP4 files) |
| Network Port | 1 × RJ-45 (10/100 Mbps) |
| USB | 2 × USB |
| Third-Party Cameras | ONVIF (Profile T) |
| App | Imou Life app (iOS & Android); Imou Glow platform for business |
| Power Supply | DC 54V 1.85A |
| Power Consumption | NVR ≤ 9 W (without HDD), plus PoE output |
| Operating Temperature | -10°C ~ +45°C |
| Operating Humidity | Less than 95% RH |
| Dimensions | 227.5 × 260 × 45.0 mm |
| Certification | CE |
The IMOU N118-8P (NVR-N118-8P-8A0E) is an 18-channel network video recorder with 8 built-in PoE ports. Each port (10/100 Mbps, IEEE 802.3af/at) powers and connects an IP camera over a single Ethernet cable, plug-and-play, with a 95 W total PoE budget (max 30 W per port).
It records to one SATA hard drive of up to 16 TB with H.265 compression, shows live view on HDMI (up to 4K) or VGA (up to 1080p), and adds AI-powered Smart Search for events, people and vehicles with no subscription or extra purchase. The built-in microphone and speaker allow two-way talk, and the Imou Life app (or the Imou Glow platform for business) lets you add the NVR and its cameras by scanning, with no on-site configuration.

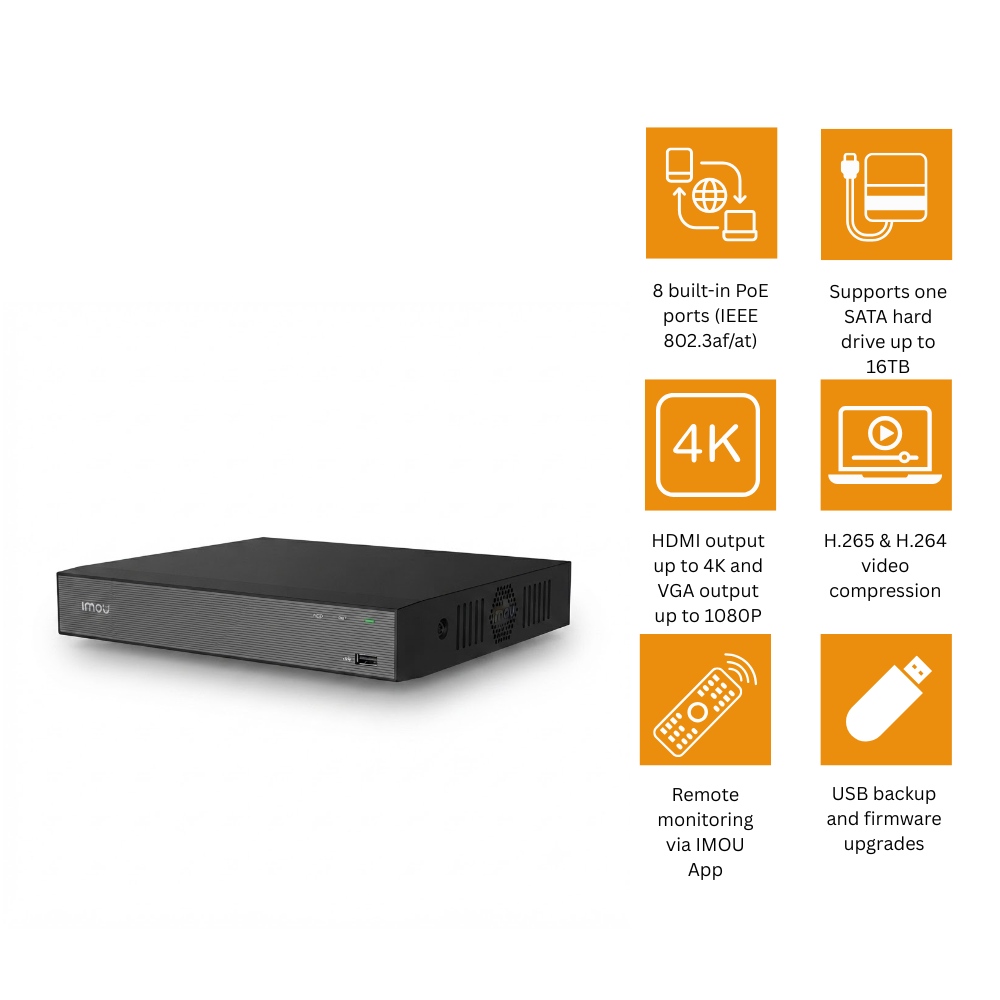

Key Features
- 8 PoE ports (10/100 Mbps, IEEE 802.3af/at): plug-and-play camera connection, power and data on one cable
- Up to 18 channels of live view
- 95 W total PoE power, up to 30 W per port
- Smart Search: AI-powered event, person and vehicle search with no subscription
- Two-way talk through the built-in microphone and speaker
- IMOU cameras auto-pair; scan to add the NVR and cameras in the Imou Life app
- HDMI output up to 4K and VGA output up to 1080p
- 1 SATA port for a hard drive up to 16 TB, with H.265 compression
- 4-channel simultaneous playback with 2×, 4×, 8× and 16× fast-forward
- ONVIF (Profile T) conformant for third-party IP cameras
Works With
- IMOU PoE cameras (plug-and-play on the PoE ports): Bullet 3MP, Bullet 5MP, Bullet 8MP 4K, PS8E Turret, PS70F Dual-Lens and 5MP PoE Pan & Tilt Indoor
- Third-party IP cameras: ONVIF (Profile T)
- Apps: Imou Life (iOS & Android) and Imou Glow
Technical Specifications
Why Choose the IMOU N118-8P?
- Up to 8 cameras powered and connected without a separate PoE switch
- Free AI Smart Search for events, people and vehicles
- Fast, remote-friendly setup: scan to add the NVR and cameras in the app
- Local recording on up to 16 TB with 4K output for on-site viewing
Downloads
Warranty: 12-month warranty from the Official Distributor.
